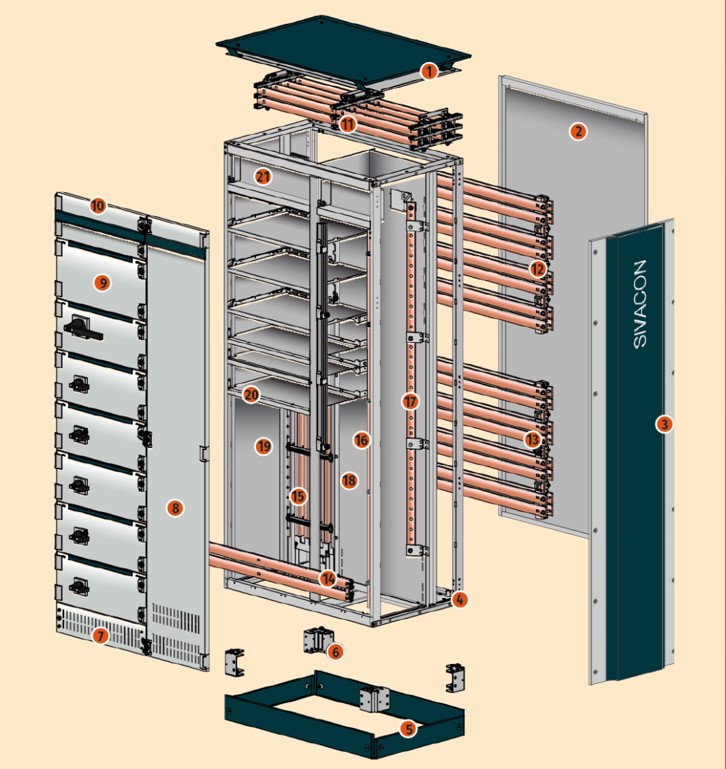

SIEMENS – LV SIVACON S8 SWGR
- LV POWER DISTRIBUTION BOARD UP TO 7000A
- IEC 60439-1 & IEC 61439-2
- Electric Shock Protection din en 50274
- Installation Condition Temperature: -5ºC ... + 40ºC
- Rated Operation Voltage (Ue): 690 V
- Rated Insulation Voltage (Ui): 1000V
- Rated Impulse w/ voltage (Uimp): 8 KV
- Main BB Horizontal: Up to 7010 A
- Main BB Vertical (Plug In Design): Up to 2100 A
- Main BB Vertical (Universal Design): Up to 1600 A
- Internal Separation (IEC 61439-2): Form 1 to Form 4
- Degree Of Protection: IP30, IP31, IP40, IP41, IP43 & IP54
- Surface Treatment: RAL 7035 Light Grey
