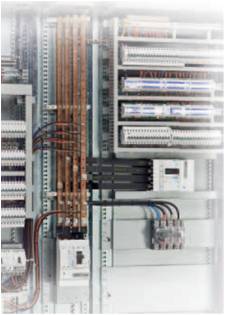

The QuiXtra 630 range consists of both wall mounting and floor standing sheet steel enclosures, as well as busbars and functional units to easily integrate all types of low voltage electrical devices up to 630A. The combination of the QuiXtra 630 enclosure and original GE LV electrical devices are designed according the new standard IEC 61439-2.

• Industrial (Plants, factories, water)
• High commercial (Airports, hospitals, banks, governmental buildings)
• Low commercial (offices, shopping malls, schools)

Description

QuiXtra 630 is designed to be a reliable, simple, flexible and easy to use system enclosure, modular concept, with the added value of its fresh and attractive design that integrates perfectly into a commercial environment. The QuiXtra 630 range consists of 24 different enclosures. There are nine enclosure heights available, from 450mm up to 1800mm, and three enclosure widths, for functions of 12, 24 and 36 modules. All enclosures have the same depth (220mm without door and 250mm with door), allowing horizontal coupling and providing the user total flexibility to define the layout of the LV distribution boards. QuiXtra 630 offers plain and transparent (tempered glass) doors, for an easy inspection of the devices installed Inside the enclosure. The doors are equipped with closing mechanism operated by a central handle.
